Logger ini

The logger ini is used to store the events, KPIs. In addition, this ini is used to set the attributes for the live plot There are three different complexity levels available for creating a production. Lvl1 is the most complex production. The level is saved in the section Type.

type: defines the lvl: ‘lvl1’, ‘lvl2’ or ‘lvl3’

[Type]
type = 'lvl2'

Lvl3 - Basic

Main Structure

Key	Value
log_events	bool: True or False, defines if all events should be saved
time_interval	defines time interval for the calculation of the kpis over time
log_summary	defines, which kpis should be logged for a summary report: bool (True or False)
log_time	defines, which kpis should be logged over time intervals: bool (True or Flase)

the storage folder depends on the path defined for KPIs

Example

[KPIs]
time_interval=100
log_summary=True
log_time=True
log_events=False

ConfigIni

This section copies all data from the specified folder if desired and saves it to the logger folder _ini. The main purpose is to store the conifg files (ini-file) at the KPIs.

Main Structure

Key	Value
addIni	bool: True or False
path	relative path to the config path

the storage folder depends on the path defined for KPIs

Example

[ConfigIni]
addIni=True
path="/example/config/"

Plot

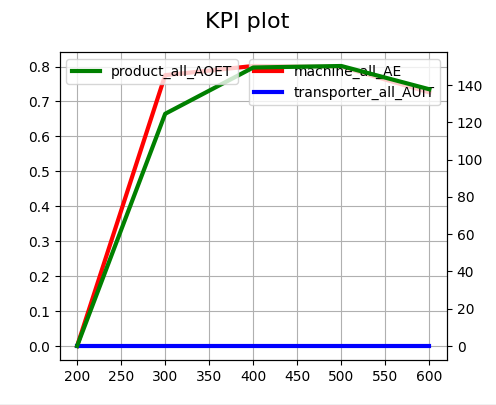

it is possible to display live KPIs in a graph

Main Structure

Key	Value
plot	bool: True or False
number_of_points_x	defines how many data points are shown at once, until the graph overflows
data	list of dicts, which defines the kpi [ {‘object_name’: label or ‘all’,’kpi’: str,’type’: str}]

the following types are defined: machine, transporter, queue, product, transporter_distribution, simulation

Example

[Plot]
plot=False
number_of_points_x=15
#max 3 values
data=[{'object_name':'all','kpi':'AE','type':'machine'},{'object_name':'all','kpi':'AUITp','type':'transporter'},{'object_name':'all','kpi':'AOET','type':'product'}]

Save

Main Structure

Key	Value
csv	bool: True or False
database	bool: True or False
path	path for csv output
sql_alchemy_database_uri	only needed if database True, path to database

the following types are defined: machine, transporter, queue, product, transporter_distribution, simulation

Example

[Save]
csv = True
database = True
path="/ontologysim/example/log/"
sql_alchemy_database_uri = "sqlite:///ontologysim/ProductionSimulation/database/SimulationRun.db"

Lvl2 - Basic

KPIs

The KPIs section defines how the individual events should be logged

Main Structure

Key	Value
log_events	bool: True or False, defines if all events should be saved
time_interval	defines time interval for the calculation of the kpis over time
log_summary	defines, which kpis should be logged for a summary report: for types view Logger_Enum
log_time	defines, which kpis should be logged over time intervals: for types view Logger_Enum

the storage folder depends on the path defined for KPIs

Example

[KPIs]
time_interval=100
log_summary= ["transporter"]
log_time=["machine"]
log_events=False

ConfigIni

This section copies all data from the specified folder if desired and saves it to the logger folder _ini. The main purpose is to store the conifg files (ini-file) at the KPIs.

Main Structure

Key	Value
addIni	bool: True or False
path	relative path to the config path

the storage folder depends on the path defined for KPIs

Example

[ConfigIni]
addIni=True
path="/example/config/"

Plot

it is possible to display live KPIs in a graph

Main Structure

Key	Value
plot	bool: True or False
number_of_points_x	defines how many data points are shown at once, until the graph overflows
data	list of dicts, which defines the kpi [ {‘object_name’: label or ‘all’,’kpi’: str,’type’: str}]

the following types are defined: machine, transporter, queue, product, transporter_distribution, simulation

Example

[Plot]
plot=False
number_of_points_x=15
#max 3 values
data=[{'object_name':'all','kpi':'AE','type':'machine'},{'object_name':'all','kpi':'AUITp','type':'transporter'},{'object_name':'all','kpi':'AOET','type':'product'}]

Save

Main Structure

Key	Value
csv	bool: True or False
database	bool: True or False
path	path for csv output
sql_alchemy_database_uri	only needed if database True, path to database

the following types are defined: machine, transporter, queue, product, transporter_distribution, simulation

Example

[Save]
csv = True
database = True
path="/ontologysim/example/log/"
sql_alchemy_database_uri = "sqlite:///ontologysim/ProductionSimulation/database/SimulationRun.db"

Lvl1 - Advanced

currently not available

Complete file

LVL3: Example

this file is available in example/config/logger_config_3.ini

[Type]
type = 'lvl3'

[KPIs]
time_interval=100
log_summary=True
log_time=True
log_events=False


[ConfigIni]
addIni=False
path="/example/config/"

[Plot]
plot=False
number_of_points_x=15
#max 3 values
data=[{'object_name':'all','kpi':'AE','type':'machine'},{'object_name':'all','kpi':'AUITp','type':'transporter'},{'object_name':'all','kpi':'AOET','type':'product'}]

[Save]
csv = True
database = True
path="/ontologysim/example/log/"
sql_alchemy_database_uri = "sqlite:///ontologysim/ProductionSimulation/database/SimulationRun.db"

LVL2: Example

this file is available in example/config/logger_config_2.ini

[Type]
type = 'lvl2'

[KPIs]
time_interval=100
log_summary= ["transporter"]
log_time=["machine"]
log_events=False

[ConfigIni]
addIni=False
path="/example/config/"

[Plot]
plot=False
number_of_points_x=15
#max 3 values
data=[{'object_name':'all','kpi':'AE','type':'machine'},{'object_name':'all','kpi':'AUITp','type':'transporter'},{'object_name':'all','kpi':'AOET','type':'product'}]


[Save]
csv = True
database = True
path="/ontologysim/example/log/"
sql_alchemy_database_uri = "sqlite:///ontologysim/ProductionSimulation/database/SimulationRun.db"
